Description
Track proven and tested in the extreme Texas heat with ambient temperature consistently over 90°F (32°C) at TX2K by three S58 vehicles. All three posted times of 7-seconds, including new world record holder of the "Fastest BMW in the World" Tom Wrigley Performance in his G80 M3 race car (7.67 seconds at 183mph). The street driven GTP Motorsport G87 xDrive M2 also set the M2 World Record with a time of 7.84 seconds at 178mph.
Installation Instructions
This Part Fits:
Installation Instructions
- Includes CSF's proprietary Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%

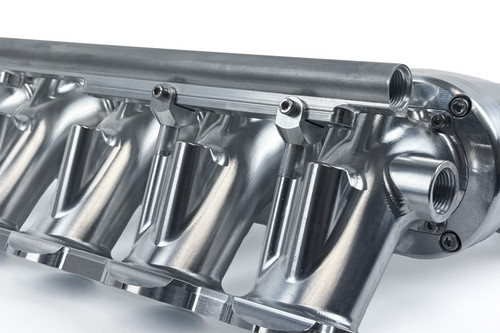

- Modular Ports on the Top of Each Cylinder Runner that can also be used for Nitrous or Methanol Injection
- Throttle Body Flange is engineered to accommodate a larger 77mm S55 throttle body (BMW 13-54-7-597-871)
- Comes Finished in Raw Billet Aluminum - Custom Finishes available (Powder Coat, Cerakote, or Anodizing)
- Two Integrated Sensor Pads to Measure Additional Parameters or as Extra Sources of Vacuum
- High-pressure o-ring sealed construction designed to withstand 100+ psi (7+ Bar)
- CSF recommends using VTT-FAB Extension Harnesses - B58/S58 to S55 TB Conversion
- Plenum inlet angle optimally designed for easier intercooler pipe routing
- Fully CNC machined 6061 Billet Aluminum Made by CPC (Made in Australia)

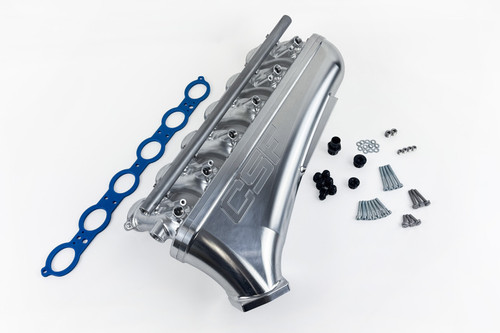

- Includes Hardware and Installation Kit with picture diagrams and BOM
- One Fuel Rail for Top Feed Port Injection (for 6 Injector setup)
- Top Feed Port Injection - capable of running 6 or 12 injectors.
- Includes One OEM TMAP, Two 1/4 NPT, and Four 1/8th NPT Ports
- Individual Runner Nitrous / Methanol adapter kit - CSF #8403
- 2nd Fuel Rail (for 12 Injector setup) - CSF #8404
- Optional Add-Ons (not included):
- 6 Injector Block Off Plugs
- Internal Velocity Stacks
- Includes:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2023-2026 | BMW | M240i | Base |
| 2022-2026 | BMW | M240i xDrive | Base |
| 2020-2024 | BMW | M340i | Base |
| 2020-2024 | BMW | M340i xDrive | Base |
| 2021-2024 | BMW | M440i | Base |
| 2022-2024 | BMW | M440i Gran Coupe | Base |
| 2021-2024 | BMW | M440i xDrive | Base |
| 2022-2024 | BMW | M440i xDrive Gran Coupe | Base |
| 2022-2026 | BMW | Z4 | M40i |
| 2024 | Toyota | GR Supra | 45th Anniversary Edition |
| 2021-2022 | Toyota | GR Supra | A91 Edition |
| 2023 | Toyota | GR Supra | A91-MT Edition |
| 2020-2026 | Toyota | GR Supra | Base |
| 2020 | Toyota | GR Supra | Launch Edition |
| 2026 | Toyota | GR Supra | MkV Final Edition |
| 2020-2026 | Toyota | GR Supra | Premium |
